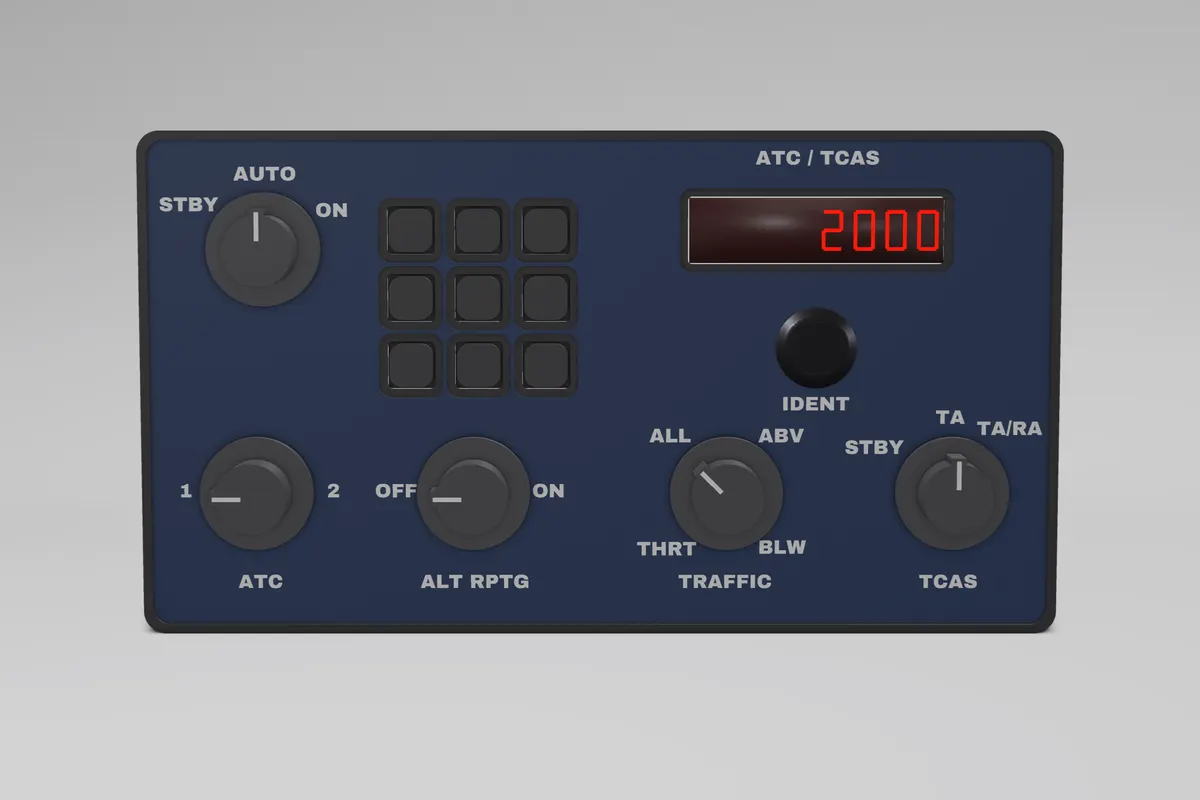

Render Renders, not photos: no printed sample has been photographed yet.
Glareshield Panels · Files v1.0 · for FlyByWire A32NX
A320 ATC/TCAS Panel
Soldered build Not yet flown in the sim
A 3D-printable atc/tcas panel for FlyByWire A32NX in MSFS, wired to a MobiFlight board you build yourself.
£9.00 · price pending confirmation
Register interest (opens in a new tab) Checkout opens when we launch. Digital download, 15.4 MB.
Printed parts (printed and posted, UK first): coming soon.
Register interest (opens in a new tab)
You add the electronics.
- Board
- Raspberry Pi Pico H
- Difficulty
- Intermediate+ (~44 joints, 74HC165 chips)
- Print time
- 3.5 h plain · 3.5 h backlit
- Printer
- A Bambu Lab P1S or any printer with a 256 mm bed, a 0.4 mm nozzle, and an AMS (or manual colour changes) for 3 colours
Build it
-
Solderless not for this panel yet
At least one part here has no push-on version yet, so this panel is a soldered build for now.
-
Soldered
Intermediate+ (~44 joints, 74HC165 chips). The wiring guide in the bundle walks through every joint, and the MobiFlight configuration is ready to load.
What's in the download
- Print files, plain and backlit (STL, STEP and a Bambu Studio project)
- The parts list with buy links and estimated prices
- The wiring guide and the MobiFlight configuration
- A 10-minute test checklist, the licence and a README
Parts and your estimated cost
| Core build | £35.09 |
|---|---|
| + Backlighting (optional) | +£8.00 |
| + Status lights (optional) ATC FAIL | +£0.17 |
| Everything | £43.26 |
Estimated parts cost for you, the builder: UK prices including VAT, single quantities; filament not included. You buy the parts from the suppliers you choose.
Main components (11)
| Qty | Component |
|---|---|
| 1 | 7-seg display, MAX7219 8-digit window |
| 9 | Rubberised numeric keypad key (10 mm, digit on cap) |
| 1 | Momentary push button (16 mm) |
| 2 | Rotary switch Lorlin CK1049, stop set to 2 positions (1P12W, M10 bush) |
| 2 | Rotary switch Lorlin CK1049, stop set to 3 positions (1P12W, M10 bush) |
| 1 | Rotary switch Lorlin CK1049, stop set to 4 positions (1P12W, M10 bush) |
| 88 | Dupont crimp terminal + housing |
| 1 | Raspberry Pi Pico H (genuine, headers fitted) - pre-flashed with MobiFlight |
| 1 | 74HC165 input shift register + 10k resistor network |
| 1 | 74HCT245 level shifter (3.3 V Pico -> 5 V MAX7219) |
| 5 | Pointer knob Ø25, printed, 6 mm bore + M3 x 4 grub screw |
Wire, crimps and screws are in the full list in the bundle.
