Glareshield Panels · Files v1.0
Print it. Wire it. Fly it.
Cockpit panels you print on your own 3D printer and wire to a MobiFlight board. Every bundle has the print files (plain and backlit), the parts list with buy links, the wiring guide and the MobiFlight configuration.
Build option 1
Solderless
No soldering iron. Parts with push-on terminals and ready-made leads that plug onto a carrier board, in the order of a numbered table. About 45 minutes of plugging in.
Available where every part has a push-on version (marked Solderless). Push-on parts cost a little more; the guide lists them. Grip of each push-on part is being checked on samples.
Build option 2
Soldered
The classic build: solder the switches, encoders and displays to the board with hookup wire. Every panel can be built this way; each page gives the joint count and difficulty.
Board: an Arduino Nano clone or a Raspberry Pi Pico H, flashed with MobiFlight (free).
Files or printed parts
| Files | Printed parts | |
|---|---|---|
| What you get | Download: print files, parts list, wiring guide, MobiFlight config | The plastic parts, printed and posted, plus the files |
| You need | A 256 mm-bed printer, the electronics | The electronics only |
| Status | Available | Coming soon UK first |
Want printed parts? Register your interest (opens in a new tab)
Tested with
| What | Status |
|---|---|
| Printer | Bambu Lab P1S, 0.4 mm nozzle |
| MobiFlight | 11.3 |
| In the sim | Not yet flown per panel: each page says so |
Parts costs are estimates for the builder (UK prices inc VAT, single quantities); they change.
Catalogue

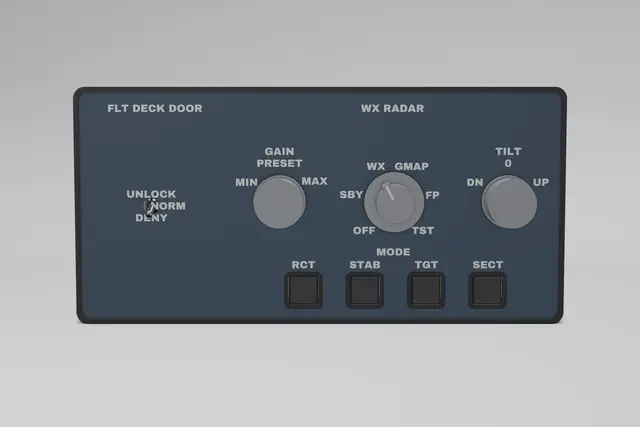

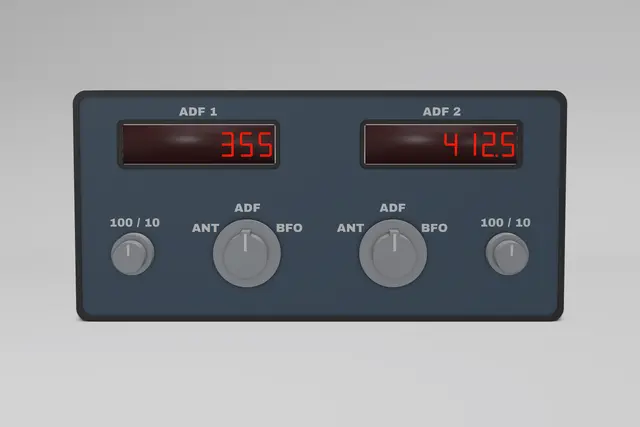

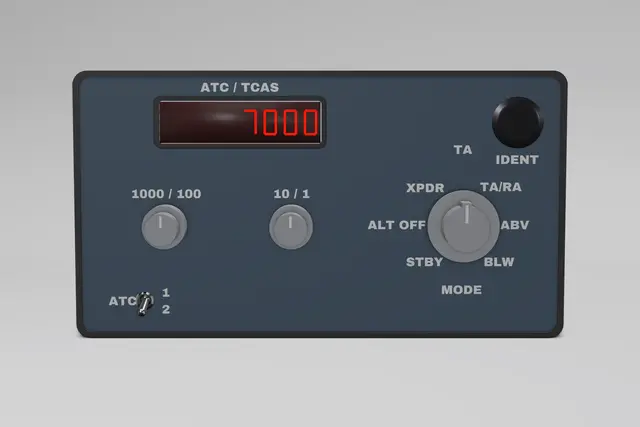

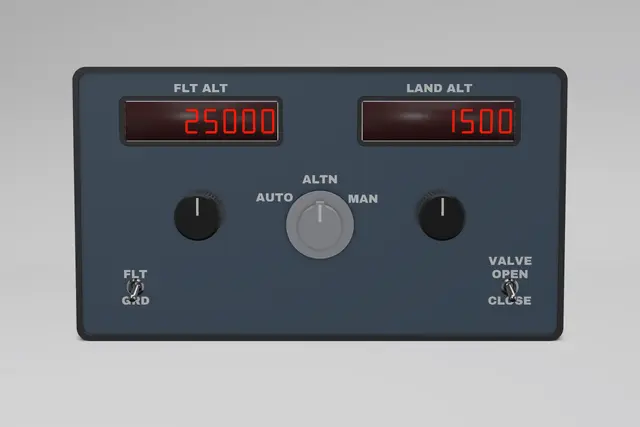

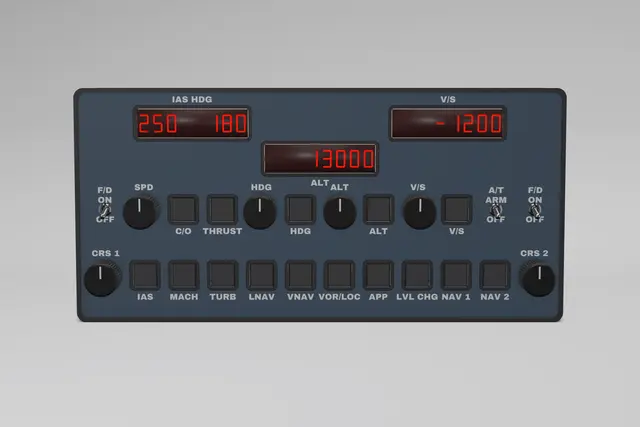

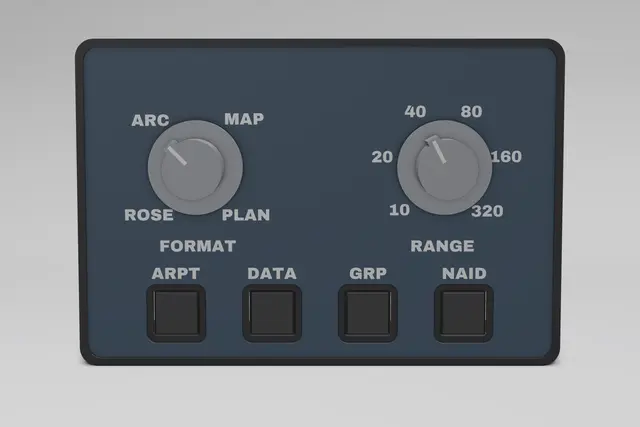

Avro RJ panels
For the Just Flight Avro RJ in MSFS. Solderless-capable panels first.
-
Render -
Render -
Render -
Render -
Render -
Render -
Render
Catalogue

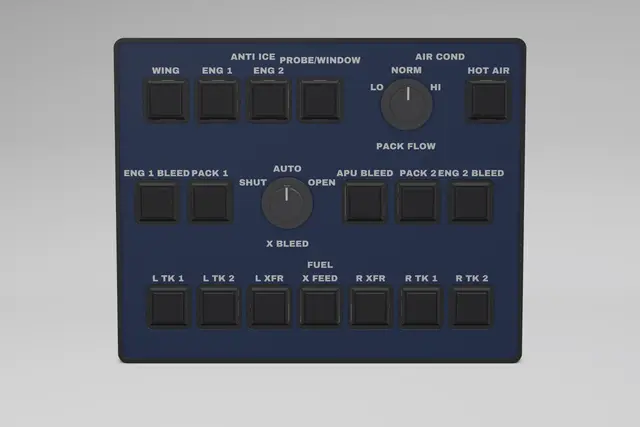

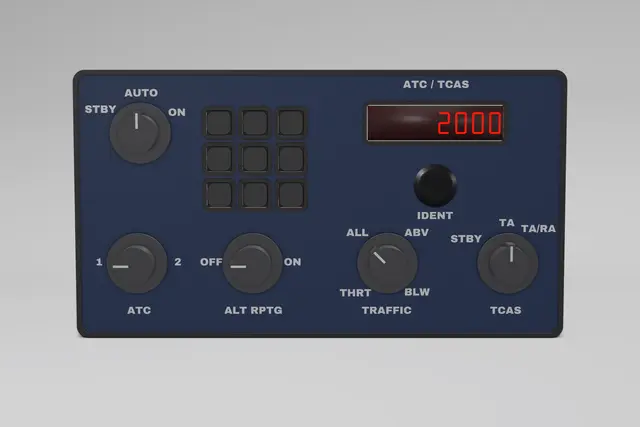

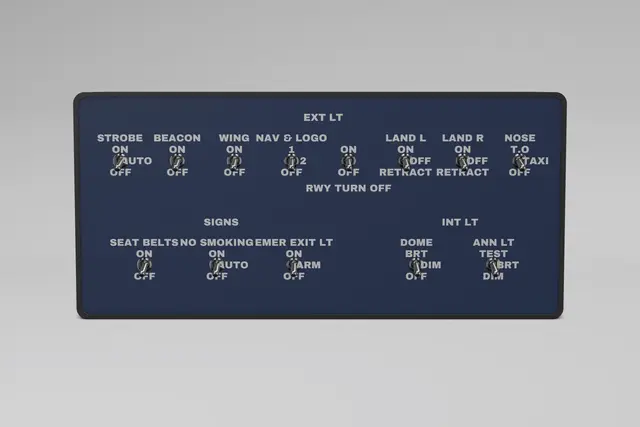

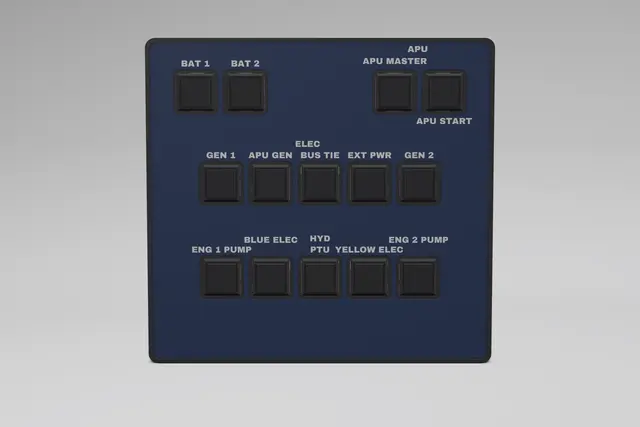

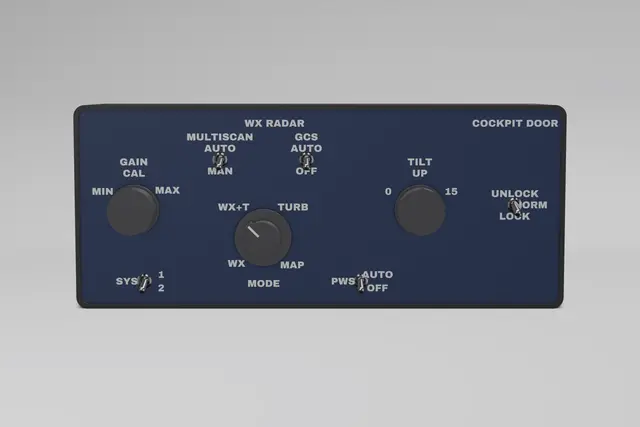

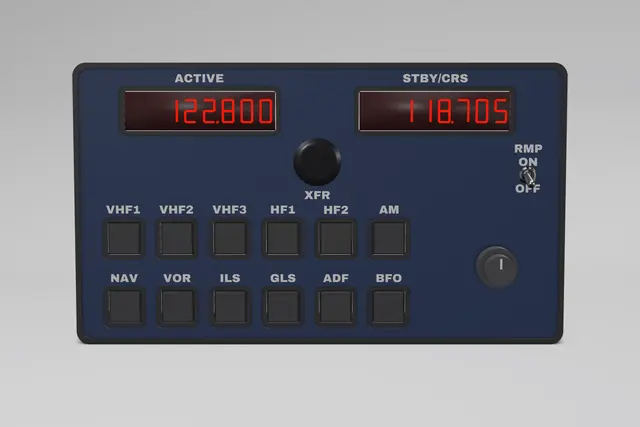

A320 panels
For the FlyByWire A32NX in MSFS. Solderless-capable panels first.
-
Render coming -
Render -
Render -
Render -
Render -
Render -
Render - Render coming
Build guides
Every bundle has its wiring guide and MobiFlight configuration. The solderless guides are published here too, so you can see what a build involves before you buy.
Read the build guidesPrices
Files cost £9 to £15 per panel (pending confirmation). You buy the electronics from the suppliers you choose; the parts list links them.
Personal-use licence: print as many as you like for your own cockpit. Files licence
