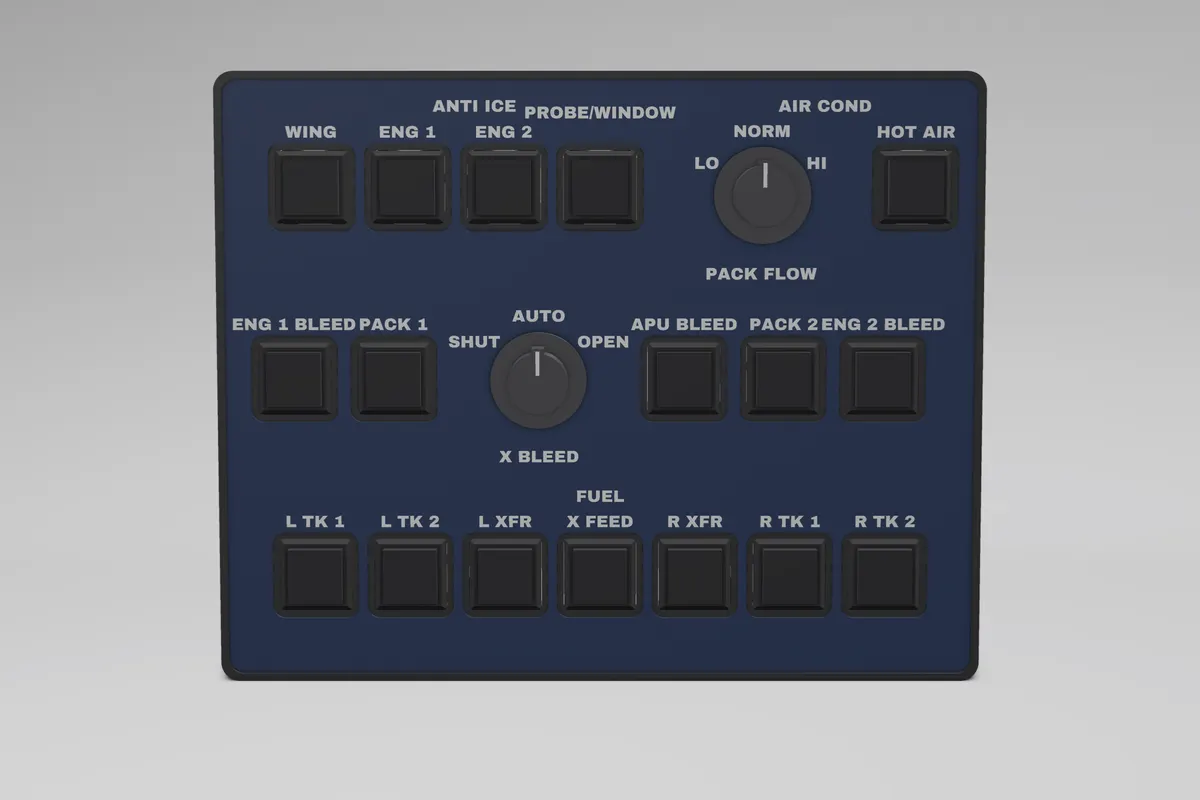

A320 Overhead: AIR + ANTI ICE + FUEL
Soldered build Not yet flown in the sim
A 3D-printable overhead: air + anti ice + fuel for FlyByWire A32NX in MSFS, wired to a MobiFlight board you build yourself.
£12.00 · price pending confirmation
Register interest (opens in a new tab) Checkout opens when we launch. Digital download, 22.7 MB.
Printed parts (printed and posted, UK first): coming soon.
Register interest (opens in a new tab)
You add the electronics.
- Board
- Raspberry Pi Pico H
- Difficulty
- Intermediate+ (~42 joints)
- Print time
- 4.5 h plain · 4.5 h backlit
- Printer
- A Bambu Lab P1S or any printer with a 256 mm bed, a 0.4 mm nozzle, and an AMS (or manual colour changes) for 3 colours
Build it
-
Solderless not for this panel yet
At least one part here has no push-on version yet, so this panel is a soldered build for now.
-
Soldered
Intermediate+ (~42 joints). The wiring guide in the bundle walks through every joint, and the MobiFlight configuration is ready to load.
What's in the download
- Print files, plain and backlit (STL, STEP and a Bambu Studio project)
- The parts list with buy links and estimated prices
- The wiring guide and the MobiFlight configuration
- A 10-minute test checklist, the licence and a README
Parts and your estimated cost
| Core build | £17.86 |
|---|---|
| + Backlighting (optional) | +£8.00 |
| + Status lights (optional) WING, ENG 1, ENG 2, PROBE/WINDOW, HOT AIR, ENG 1 BLEED, PACK 1, APU BLEED, PACK 2, ENG 2 BLEED, L TK 1, L TK 2, L XFR, X FEED, R XFR, R TK 1, R TK 2 | +£6.20 |
| Everything | £32.06 |
Estimated parts cost for you, the builder: UK prices including VAT, single quantities; filament not included. You buy the parts from the suppliers you choose.
Main components (5)
| Qty | Component |
|---|---|
| 17 | Pushbutton, 19 mm square, momentary, printed legend cap (unlit) |
| 2 | Rotary switch Lorlin CK1049, stop set to 3 positions (1P12W, M10 bush) |
| 84 | Dupont crimp terminal + housing |
| 1 | Raspberry Pi Pico H (genuine, headers fitted) - pre-flashed with MobiFlight |
| 2 | Pointer knob Ø25, printed, 6 mm bore + M3 x 4 grub screw |
Wire, crimps and screws are in the full list in the bundle.
