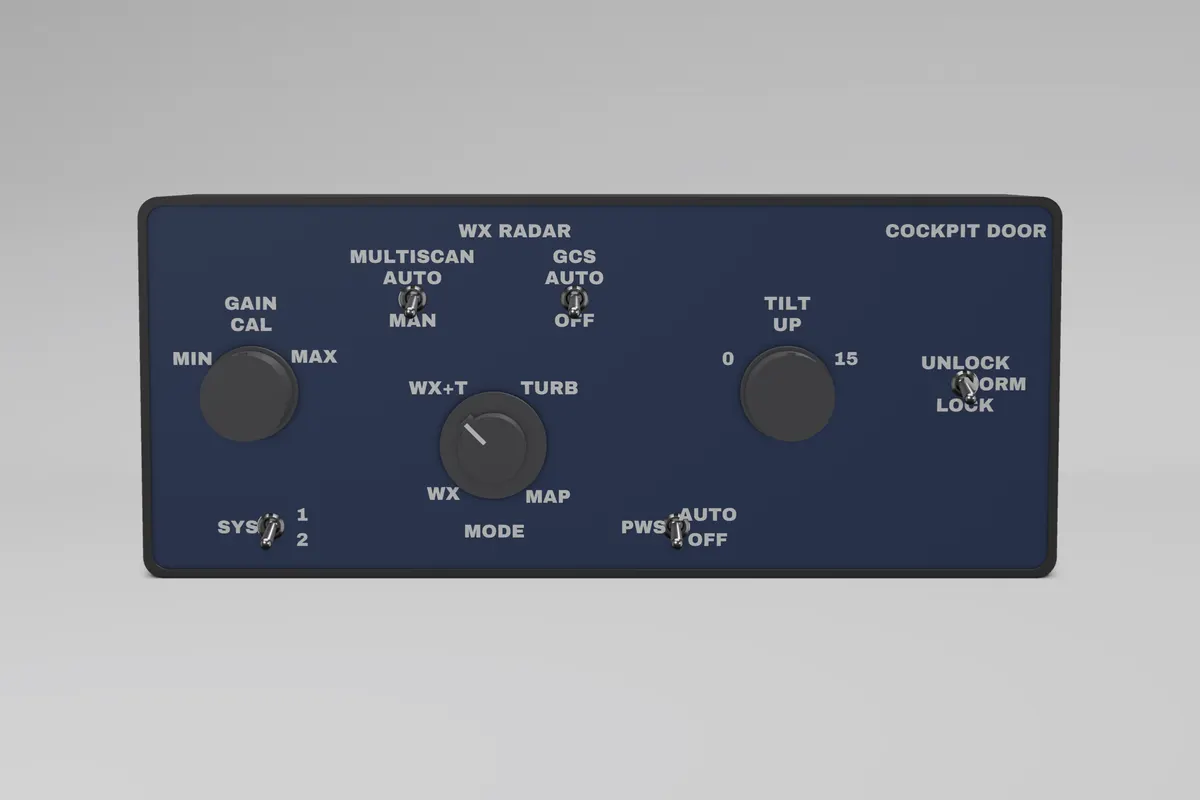

Render of the Glareshield A320 Pedestal: WX RADAR + COCKPIT DOOR Render

Renders, not photos: no printed sample has been photographed yet.

Glareshield Panels · Files v1.0 · for FlyByWire A32NX

A320 Pedestal: WX RADAR + COCKPIT DOOR

Soldered build Not yet flown in the sim

A 3D-printable pedestal: wx radar + cockpit door for FlyByWire A32NX in MSFS, wired to a MobiFlight board you build yourself.

£9.00 · price pending confirmation
Register interest (opens in a new tab) Checkout opens when we launch.
Digital download, 20.2 MB.
Printed parts (printed and posted, UK first): coming soon. Register interest (opens in a new tab) You add the electronics.
Board
Raspberry Pi Pico H
Difficulty
Intermediate (soldering ~22 joints, no extra chips)
Print time
3.3 h plain · 3.4 h backlit
Printer
A Bambu Lab P1S or any printer with a 256 mm bed, a 0.4 mm nozzle, and an AMS (or manual colour changes) for 3 colours

Build it

  1. Solderless not for this panel yet

    At least one part here has no push-on version yet, so this panel is a soldered build for now.

  2. Soldered

    Intermediate (soldering ~22 joints, no extra chips). The wiring guide in the bundle walks through every joint, and the MobiFlight configuration is ready to load.

What's in the download

  • Print files, plain and backlit (STL, STEP and a Bambu Studio project)
  • The parts list with buy links and estimated prices
  • The wiring guide and the MobiFlight configuration
  • A 10-minute test checklist, the licence and a README

Parts and your estimated cost

Core build£15.36
+ Backlighting (optional)+£8.00
+ Status lights (optional)
OPEN, FAULT		+£0.40
Everything£23.76

Estimated parts cost for you, the builder: UK prices including VAT, single quantities; filament not included. You buy the parts from the suppliers you choose.

Main components (8)
QtyComponent
2Potentiometer (9 mm, 7 mm bushing)
1Rotary switch Lorlin CK1049, stop set to 4 positions (1P12W, M10 bush)
1Toggle switch, 3-position ON-OFF-ON (6 mm)
4Toggle switch, SPST (6 mm bushing)
44Dupont crimp terminal + housing
1Raspberry Pi Pico H (genuine, headers fitted) - pre-flashed with MobiFlight
2Pot knob Ø22 x 15, printed (models/pot_9mm__knob.step), fits the RK09K D-shaft
1Pointer knob Ø25, printed, 6 mm bore + M3 x 4 grub screw

Wire, crimps and screws are in the full list in the bundle.
