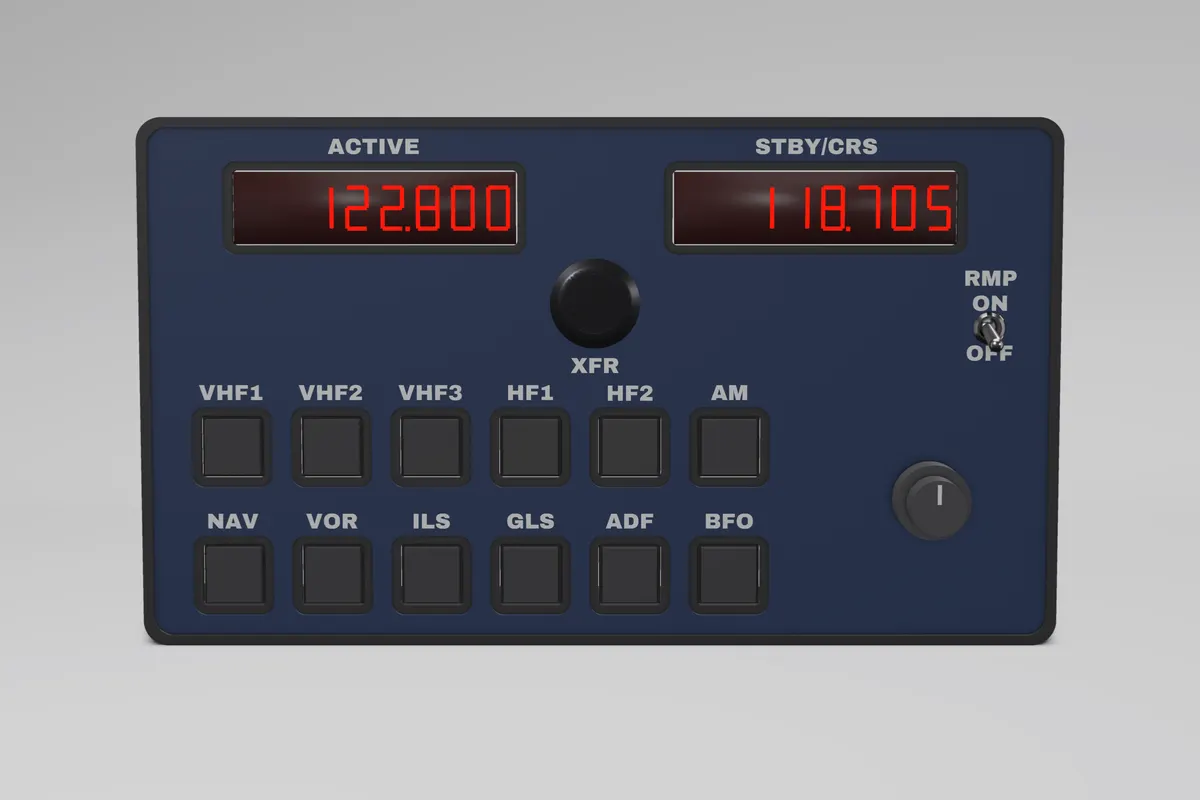

A320 Radio Management Panel
Soldered build Not yet flown in the sim
A 3D-printable radio management panel for FlyByWire A32NX in MSFS, wired to a MobiFlight board you build yourself.
£9.00 · price pending confirmation
Register interest (opens in a new tab) Checkout opens when we launch. Digital download, 13.9 MB.
Printed parts (printed and posted, UK first): coming soon.
Register interest (opens in a new tab)
You add the electronics.
- Board
- Raspberry Pi Pico H
- Difficulty
- Intermediate+ (~45 joints)
- Print time
- 3.1 h plain · 3.1 h backlit
- Printer
- A Bambu Lab P1S or any printer with a 256 mm bed, a 0.4 mm nozzle, and an AMS (or manual colour changes) for 3 colours
Build it
-
Solderless not for this panel yet
At least one part here has no push-on version yet, so this panel is a soldered build for now.
-
Soldered
Intermediate+ (~45 joints). The wiring guide in the bundle walks through every joint, and the MobiFlight configuration is ready to load.
What's in the download
- Print files, plain and backlit (STL, STEP and a Bambu Studio project)
- The parts list with buy links and estimated prices
- The wiring guide and the MobiFlight configuration
- A 10-minute test checklist, the licence and a README
Parts and your estimated cost
| Core build | £28.82 |
|---|---|
| + Backlighting (optional) | +£8.00 |
| + Status lights (optional) VHF1, VHF2, VHF3, HF1, HF2, AM, NAV, VOR, ILS, GLS, ADF, BFO | +£8.76 |
| Everything | £45.58 |
Estimated parts cost for you, the builder: UK prices including VAT, single quantities; filament not included. You buy the parts from the suppliers you choose.
Main components (10)
| Qty | Component |
|---|---|
| 2 | 7-seg display, MAX7219 8-digit window |
| 1 | Dual concentric encoder Bourns PEC11D-4120F-S0015 (2 x 15 pulse/30 det + push) |
| 1 | Momentary push button (16 mm) |
| 12 | Square keypad button (12.5 mm), unlit, printed legend cap |
| 1 | Toggle switch, SPST (6 mm bushing) |
| 90 | Dupont crimp terminal + housing |
| 1 | Raspberry Pi Pico H (genuine, headers fitted) - pre-flashed with MobiFlight |
| 1 | 74HCT245 level shifter (3.3 V Pico -> 5 V MAX7219) |
| 1 | Dual concentric knob set, printed: outer Ø15 (6 mm slotted) + inner Ø11 (3.5 mm D) |
| 1 | Rear clamp for PEC11D (printed) + 2 x M2.5 x 6 screws |
Wire, crimps and screws are in the full list in the bundle.
