Panels / Avro RJ EFIS Control Panel

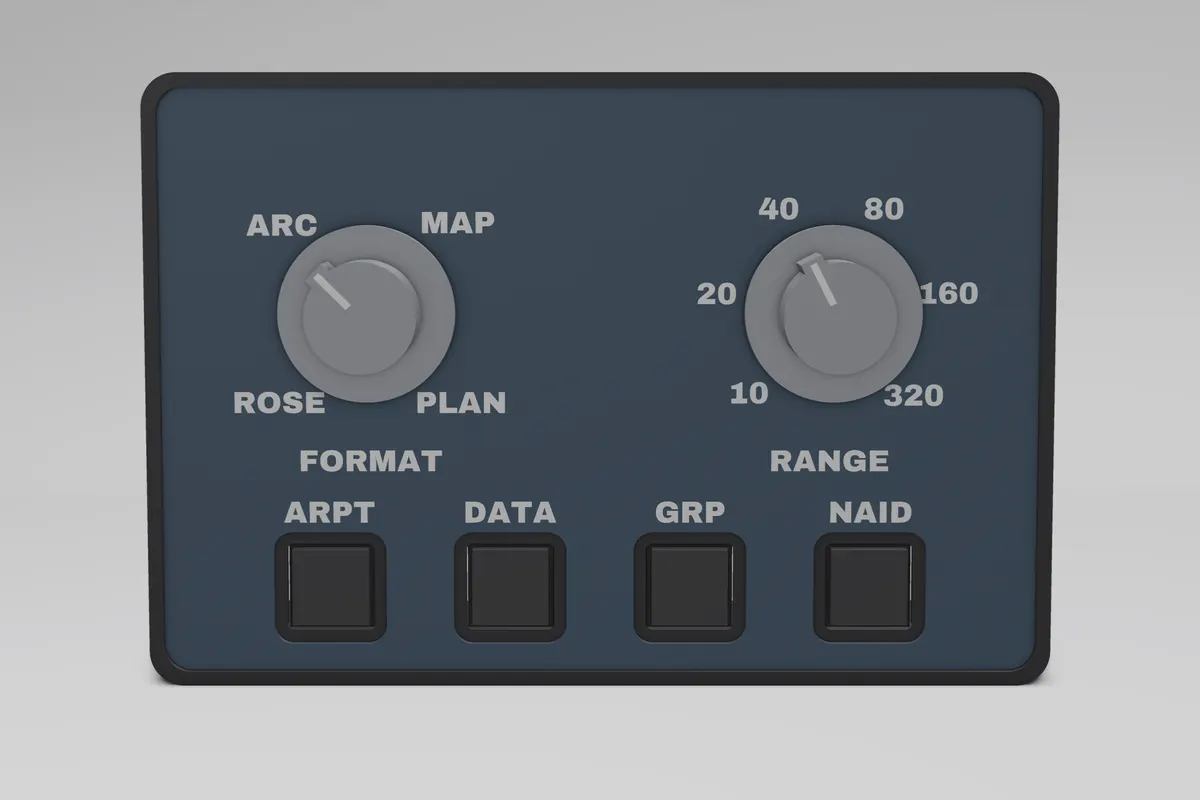

Render of the Glareshield Avro RJ EFIS Control Panel Render

Renders, not photos: no printed sample has been photographed yet.

Glareshield Panels · Files v1.0 · for Just Flight Avro RJ

Avro RJ EFIS Control Panel

Solderless or soldered Not yet flown in the sim

A 3D-printable efis control panel for Just Flight Avro RJ in MSFS, wired to a MobiFlight board you build yourself.

£9.00 · price pending confirmation
Register interest (opens in a new tab) Checkout opens when we launch.
Digital download, 14.9 MB.
Printed parts (printed and posted, UK first): coming soon. Register interest (opens in a new tab) You add the electronics.
Board
Raspberry Pi Pico H
Difficulty
Intermediate (soldering ~20 joints, no extra chips)
Print time
2.1 h plain · 2.1 h backlit
Printer
A Bambu Lab P1S or any printer with a 256 mm bed, a 0.4 mm nozzle, and an AMS (or manual colour changes) for 3 colours

Build it

  1. Solderless

    Every part here comes in a push-on version: plug ready-made leads onto a carrier board, no iron needed. The guide for this panel is being written.

  2. Soldered

    Intermediate (soldering ~20 joints, no extra chips). The wiring guide in the bundle walks through every joint, and the MobiFlight configuration is ready to load.

What's in the download

  • Print files, plain and backlit (STL, STEP and a Bambu Studio project)
  • The parts list with buy links and estimated prices
  • The wiring guide and the MobiFlight configuration
  • A 10-minute test checklist, the licence and a README

Parts and your estimated cost

Core build£16.44
+ Backlighting (optional)+£8.00
+ Status lights (optional)
ARPT, DATA, GRP, NAID		+£2.40
Everything£26.84

Estimated parts cost for you, the builder: UK prices including VAT, single quantities; filament not included. You buy the parts from the suppliers you choose.

Main components (6)
QtyComponent
4Square keypad button (12.5 mm), unlit, printed legend cap
1Rotary switch Lorlin CK1049, stop set to 4 positions (1P12W, M10 bush)
1Rotary switch Lorlin CK1049, stop set to 6 positions (1P12W, M10 bush)
40Dupont crimp terminal + housing
1Raspberry Pi Pico H (genuine, headers fitted) - pre-flashed with MobiFlight
2Pointer knob Ø25, printed, 6 mm bore + M3 x 4 grub screw

Wire, crimps and screws are in the full list in the bundle.
