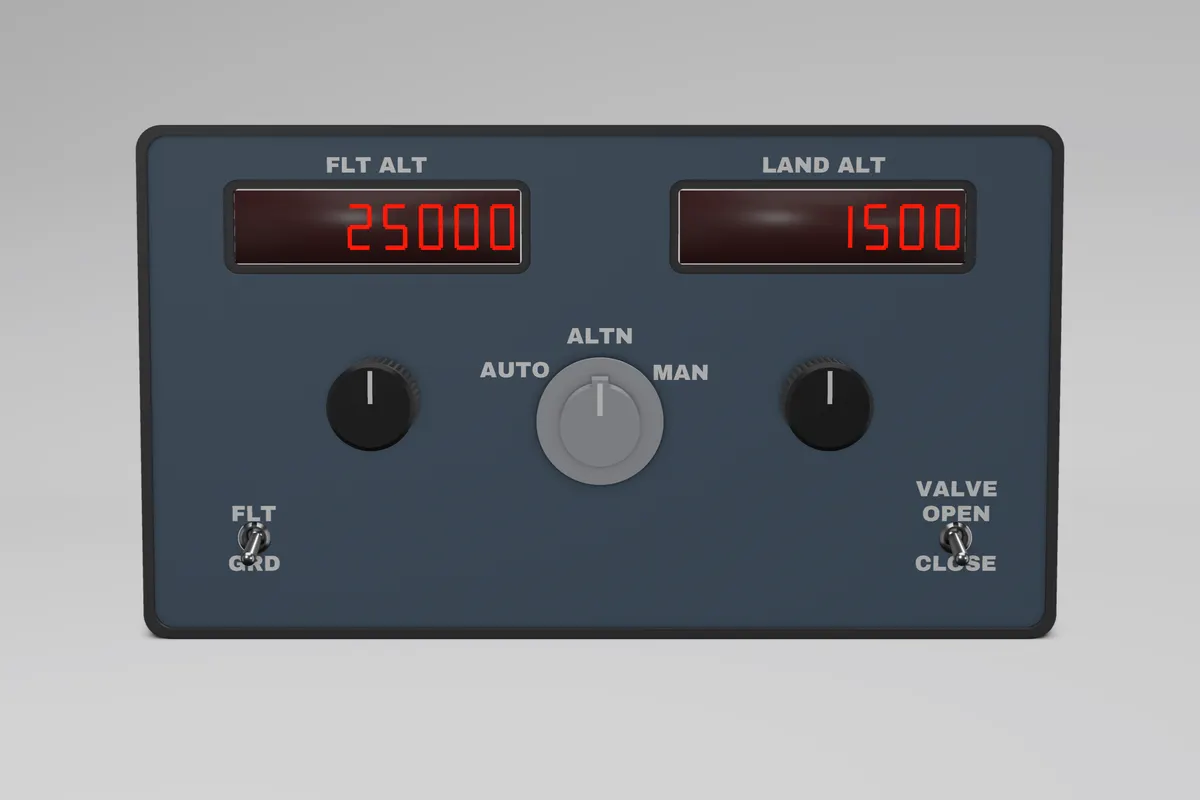

Render of the Glareshield Avro RJ Pressurisation Panel Render

Renders, not photos: no printed sample has been photographed yet.

Glareshield Panels · Files v1.0 · for Just Flight Avro RJ

Avro RJ Pressurisation Panel

Soldered build Not yet flown in the sim

A 3D-printable pressurisation panel for Just Flight Avro RJ in MSFS, wired to a MobiFlight board you build yourself.

£9.00 · price pending confirmation
Register interest (opens in a new tab) Checkout opens when we launch.
Digital download, 9.4 MB.
Printed parts (printed and posted, UK first): coming soon. Register interest (opens in a new tab) You add the electronics.
Board
Arduino Nano clone, CH340
Difficulty
Intermediate (soldering ~25 joints, no extra chips)
Print time
2.9 h plain · 3.0 h backlit
Printer
A Bambu Lab P1S or any printer with a 256 mm bed, a 0.4 mm nozzle, and an AMS (or manual colour changes) for 3 colours

Build it

  1. Solderless not for this panel yet

    At least one part here has no push-on version yet, so this panel is a soldered build for now.

  2. Soldered

    Intermediate (soldering ~25 joints, no extra chips). The wiring guide in the bundle walks through every joint, and the MobiFlight configuration is ready to load.

What's in the download

  • Print files, plain and backlit (STL, STEP and a Bambu Studio project)
  • The parts list with buy links and estimated prices
  • The wiring guide and the MobiFlight configuration
  • A 10-minute test checklist, the licence and a README

Parts and your estimated cost

Core build£23.12
+ Backlighting (optional)+£8.00
+ Status lights (optional)
AUTO FAIL, ALTN, MANUAL		+£0.63
Everything£31.75

Estimated parts cost for you, the builder: UK prices including VAT, single quantities; filament not included. You buy the parts from the suppliers you choose.

Main components (9)
QtyComponent
27-seg display, MAX7219 8-digit window
2Rotary encoder Bourns PEC11R-4220F-N0024 (24 det, 20 mm D-shaft, M7 bushing)
1Rotary switch Lorlin CK1049, stop set to 3 positions (1P12W, M10 bush)
1Toggle switch, 3-position ON-OFF-ON (6 mm)
1Toggle switch, SPST (6 mm bushing)
50Dupont crimp terminal + housing
1Arduino Nano clone, CH340 (ELEGOO) - pre-flashed with MobiFlight
2Knob 17 x 15 mm knurled aluminium, black, white index line, 6 mm D-shaft
1Pointer knob Ø25, printed, 6 mm bore + M3 x 4 grub screw

Wire, crimps and screws are in the full list in the bundle.
