Panels / Avro RJ Radio Management Panel

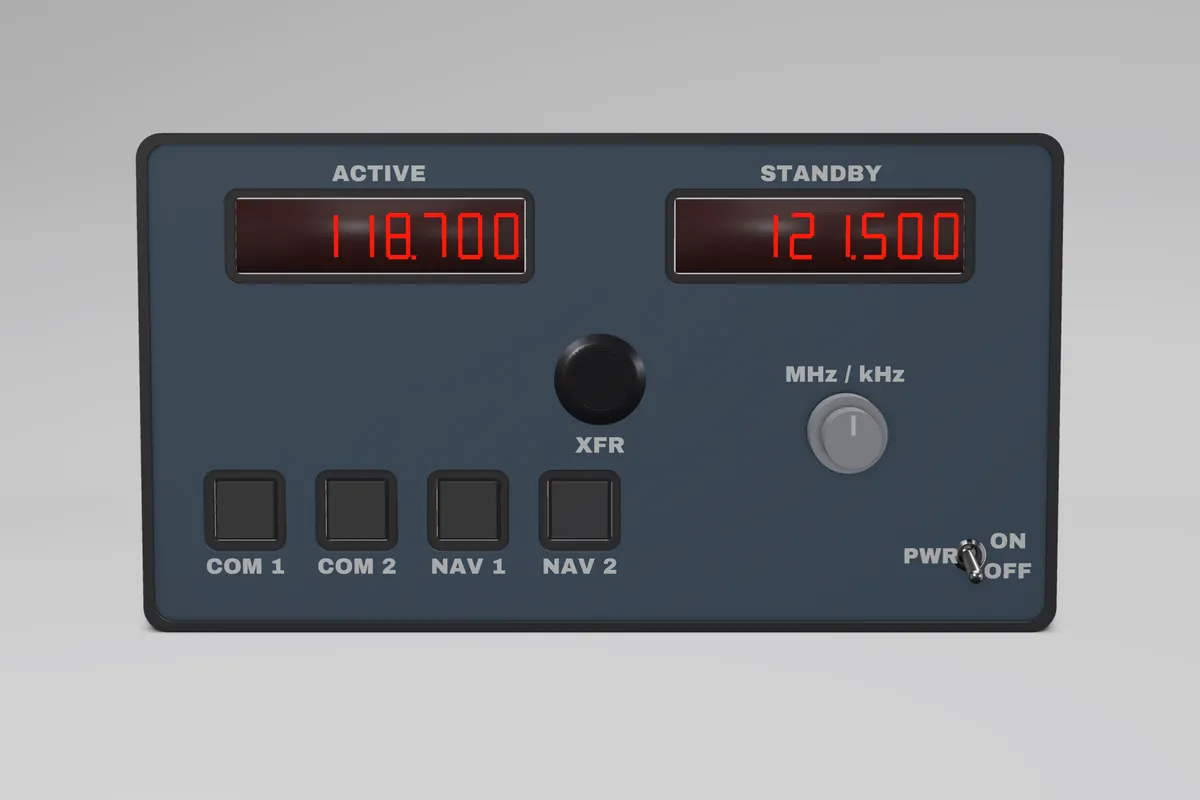

Render of the Glareshield Avro RJ Radio Management Panel Render

Renders, not photos: no printed sample has been photographed yet.

Glareshield Panels · Files v1.0 · for Just Flight Avro RJ

Avro RJ Radio Management Panel

Solderless or soldered Not yet flown in the sim

A 3D-printable radio management panel for Just Flight Avro RJ in MSFS, wired to a MobiFlight board you build yourself.

£12.00 · price pending confirmation
Register interest (opens in a new tab) Checkout opens when we launch.
Digital download, 10.3 MB.
Printed parts (printed and posted, UK first): coming soon. Register interest (opens in a new tab) You add the electronics.
Board
Arduino Nano clone, CH340
Difficulty
Intermediate (soldering ~29 joints, no extra chips)
Print time
2.9 h plain · 2.9 h backlit
Printer
A Bambu Lab P1S or any printer with a 256 mm bed, a 0.4 mm nozzle, and an AMS (or manual colour changes) for 3 colours

Build it

  1. Solderless

    Every part here comes in a push-on version: plug ready-made leads onto a carrier board, no iron needed. Read the solderless guide.

  2. Soldered

    Intermediate (soldering ~29 joints, no extra chips). The wiring guide in the bundle walks through every joint, and the MobiFlight configuration is ready to load.

What's in the download

  • Print files, plain and backlit (STL, STEP and a Bambu Studio project)
  • The parts list with buy links and estimated prices
  • The wiring guide and the MobiFlight configuration
  • A 10-minute test checklist, the licence and a README

Parts and your estimated cost

Core build£22.42
+ Backlighting (optional)+£8.00
+ Status lights (optional)
COM 1, COM 2, NAV 1, NAV 2		+£2.46
Everything£32.88

Estimated parts cost for you, the builder: UK prices including VAT, single quantities; filament not included. You buy the parts from the suppliers you choose.

Main components (9)
QtyComponent
27-seg display, MAX7219 8-digit window
1Dual concentric encoder Bourns PEC11D-4120F-S0015 (2 x 15 pulse/30 det + push)
1Momentary push button (16 mm)
4Square keypad button (12.5 mm), unlit, printed legend cap
1Toggle switch, SPST (6 mm bushing)
58Dupont crimp terminal + housing
1Arduino Nano clone, CH340 (ELEGOO) - pre-flashed with MobiFlight
1Dual concentric knob set, printed: outer Ø15 (6 mm slotted) + inner Ø11 (3.5 mm D)
1Rear clamp for PEC11D (printed) + 2 x M2.5 x 6 screws

Wire, crimps and screws are in the full list in the bundle.
